Follower Module (Passive Unit)
Passive units that complement motorized modules without electronics. These enable synchronized motion across the grid, creating a larger effective folding area. Cost-effective way to expand your system.
Scalable by design: Print additional follower modules and arrange them in any grid layout — 4×4, 4×5, 5×5, or custom. Add more follower modules at positions where manual synchronization is acceptable.
4
Parts
Print Plates
Simply launch via Bambu Studio, Bambu Handy, or Creality Cloud to start printing immediately with verified orientations and material profiles.
4 Parts
Download and print individual STL files if you prefer to slice them yourself or use a different printer.

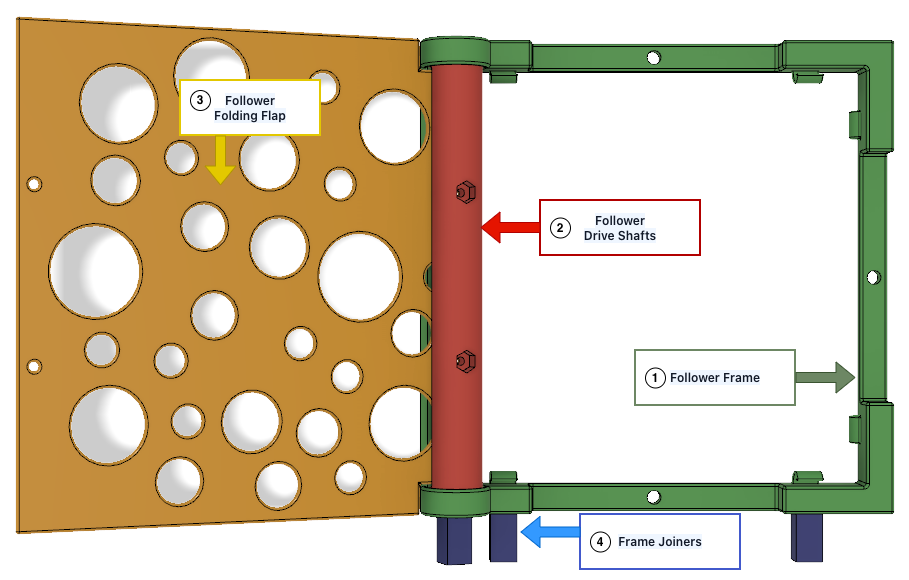

Follower Frame
Structural body frame without motor housing. Provides the main structural support and mounting points but without the servo motor compartment found in motorized modules.
Follower Drive Shafts
Passive rotation shafts without motor coupling. These shafts allow free rotation, moving in sync with adjacent motorized modules through mechanical linkage.
Follower Folding Flap
Large perforated aesthetic cover for passive units. Similar to the motorized flap but designed for passive movement without direct motor connection.
Frame Joiners
Modular connection clips for joining frame sections. Same clips used across all module types, allowing seamless integration between motorized modules and follower modules.
