Motorized Module (Active Unit)
The drive mechanics of Fabrica — contains high-torque servo mounts, drive shafts, and the structural chassis. This unit is responsible for actively lifting and folding garments.
Scalable by design: Print additional motorized modules and arrange them in any grid layout — 4×4, 4×5, 5×5, or custom. Add more wherever you need active folding axes. The controller supports up to 16 active motorized modules maximum.
6
Parts
Print Plates
Simply launch via Bambu Studio, Bambu Handy, or Creality Cloud to start printing immediately with verified orientations and material profiles.
6 Parts
Download and print individual STL files if you prefer to slice them yourself or use a different printer.

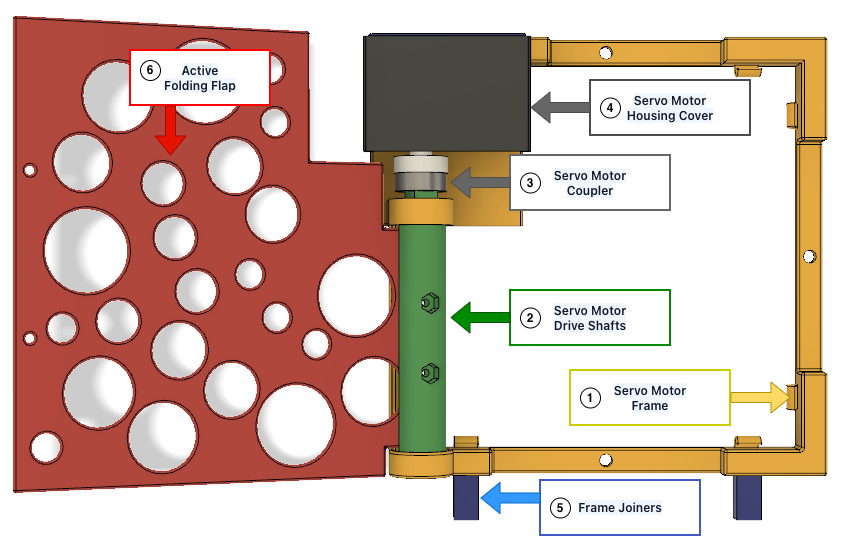

Motorized Frame
Main structural border housing the motor mount. Provides mounting points for the servo motor and holds everything together.
Servo Drive Shaft
Vertical column connected to the motor. Transfers rotational motion from the servo to the folding mechanism.
Servo Coupler
Connects the motor pin to the shaft. Ensures secure connection between the servo spline and drive shaft.
Servo Housing Cover
Lid that encloses the motor compartment. Protects the servo from dust and provides a clean finished look.
Frame Joiners
Small clips for connecting chassis sections. Allow modular assembly and provide structural rigidity between frame parts.
Active Folding Flap
Large perforated panel that performs the actual folding motion. Perforations reduce weight while maintaining strength.
